Item specifics
  • Package: Yes
  • Style: External
  • Transmission Rate: 14.4Kbps
  • Interface Type: USB
  • wirless Modem Type: WCDMA,EDGE
  • Products Status: Stock
  • Type: Wired
  • Model Number: simcom5360
  • Brand Name: EYONTA
  • Function: Sms, Voice, USSD, At Command
  • Material: Metal Case
  • 2g Frequency: 850/900/1800/190mhz
  • Color: Black
  • Weight: 5kg
  • Warranty: 1 Year
  • 3g Frequency: 850/190mhz or 900/2100mhz or 850/2100mh optional
  • sms speed: 1200-1500 per hour one port
  • sms software compatiable: sms caster,nowsms,diaffan,ozike ng gateway etc
Product Description

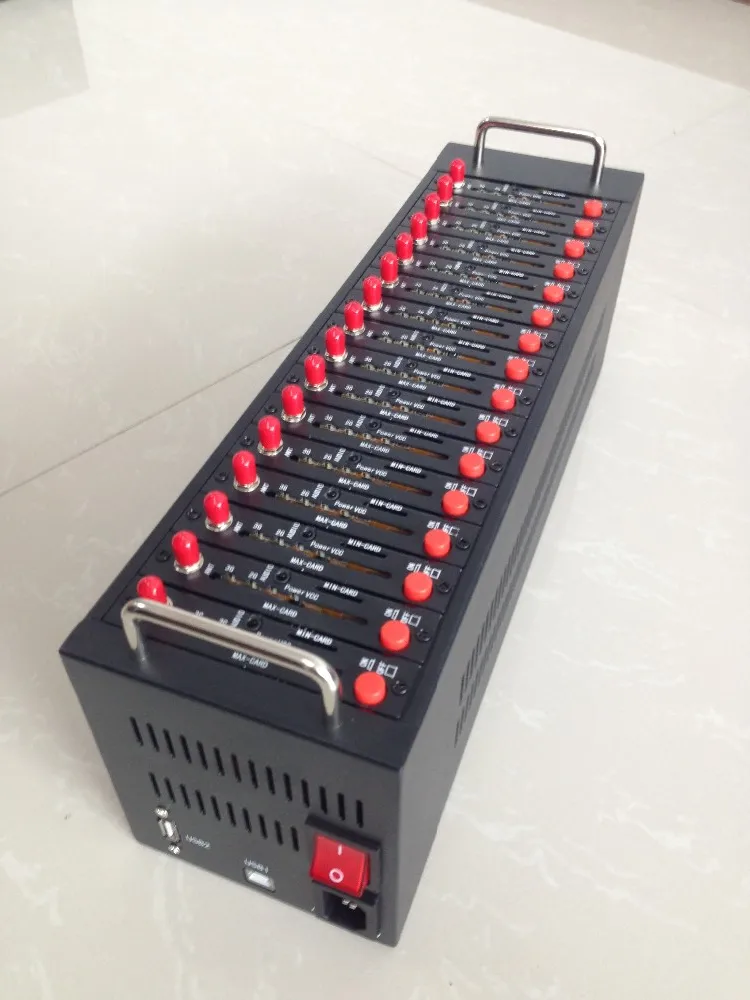

New arrival original SL808X Series 3G wcdma HSPA modem Compatible with Kannel software 16 port SL808X SMS 3G WCDMA modem pool



Brief Introduction
GSM MODEM POOL also known as "SMS cat pool" “Bulk sms machine” in China, With the USB 2.0 Cable connect with computer (laptops, desktops), insert both big and small sim cards, open our bulk sms software, then can send and receiving mass messages, simultaneously to send 1200-1500 pieces messages per hour for one port. Internal adapter assure stable voltage and excellent working environment. Free version sms software will be provided.

• SIM5360A
- Dual-Band UMTS/HSPA+ 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360E:
- Dual-Band UMTS/HSPA+ 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360D:
- Dual-Band UMTS/HSPA+ 800(850)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g


Specifications for GPS

• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
• GLonass


Specifications for Data transfer

• HSPA+
- Max.14.4Mbps(DL), Max.5.76Mbps(UL)
• WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE Class:
- Max.236.8Kbps(DL), Max.236.8Kbps(UL)
• GPRS
- Max.85.6Kbps(DL),  Max.85.6Kbps(UL)


Specifications for SMS

• Point to point MO and MT
• Text and PDU mode



Network selection
Network selection procedures described in 3G 22.011, R5 (June
2005), 3G 23.122 (June 2005), and 3G 43.022, R4
RRC connection reject message to redirect from a 3G system to a 2G
system, according to 25.331, R5 (June 2004)
A CPHS Customer Service Profile-like feature [PLMN Mode bit] on a
USIM / SIM that hides network selection related menus
Initial HPLMN scan at two minutes after power on
An HPLMN rescan irrespective of the serving MCC
Selective disabling of any 2G or 3G frequency band
Equivalent PLMN
Network selection generally within 30 seconds of power up
Enhanced network selection (ENS)

RF features
  Quad-band GSM/GPRS/EDGE (850 MHz, 900 MHz, 1800 MHz,
  1900 MHz)
  Dual-band UMTS WCDMA FDD
· SL8080/SL8081: 850 MHz, 1900 MHz
· SL8082/SL8083: 900 MHz, 2100 MHz
· SL8084/SL8085: 850 MHz, 2100 MHz
  GPS (1575.42 MHz) (SL8080/82/84 only)



Applications
Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business model)
Government agencies or large township

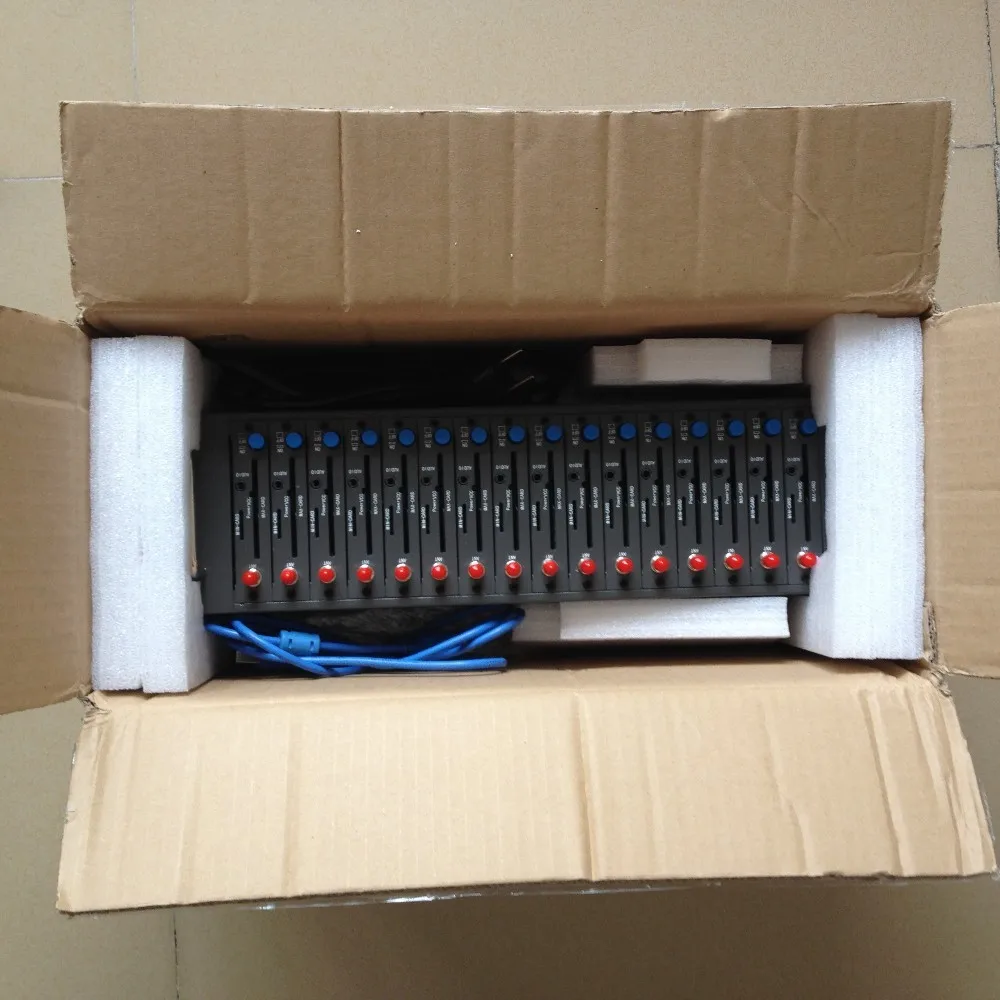

Packaging(Standard carton):
Product Weight:5kg
Product Size:L44*W24*H22(cm)
Accessories: Power cable, USB cable, Antennas

How to Install the modem pool ?
1. Make sure power cable connect device,
2. Insert SIM card, make sure chipset connect with card reader
3.Use USB 2.0 Cable connect computer, follow prompts to install driver
4. Turn on power, red LED light, all red light flashing stands equipment begins work
Notice: Please turn off the power supply first, when you plug in or out the single module,  or the IC / mini -IC card will be destroy.

Free version sms software
Compose easily to groups or all contacts in your contact list.
Contact list management - Manage subscribed and unsubscribed phone number.
Received SMS at Inbox. New messages are shown in bold.
Outbox showing messages to be sent.
Let you select which COM port to use. Information of the phone is shown if connected successfully.
List of already sent messages. Each column can be sorted by clicking the header.
Reply to inbox message.















Packaging Details
  • Unit Type: piece
  • Package Weight: 5.0kg (11.02lb.)
  • Package Size: 44cm x 22cm x 24cm (17.32in x 8.66in x 9.45in)
