Item specifics
  • Model Number: Quectel M35
  • Package: Yes
  • Style: External
  • Brand Name: EYONTA
  • Transmission Rate: 14.4Kbps
  • Interface Type: USB
  • Products Status: Stock
  • Type: Wired
  • wirless Modem Type: EDGE
  • Function: Sms,MMS, Voice, USSD, At Command,Open At,TCP/IP
  • Material: Metal Case
  • Frequency: 850/900/1800/1900MHZ
  • Color: Black
  • Weight: 5kg
  • Size: 44*24*22cm
Product Description

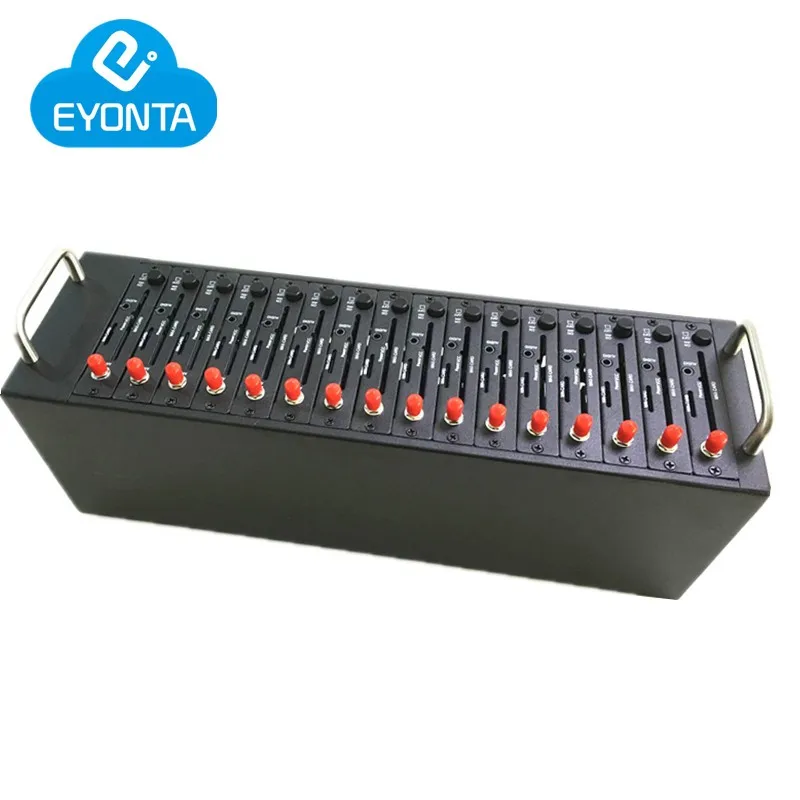

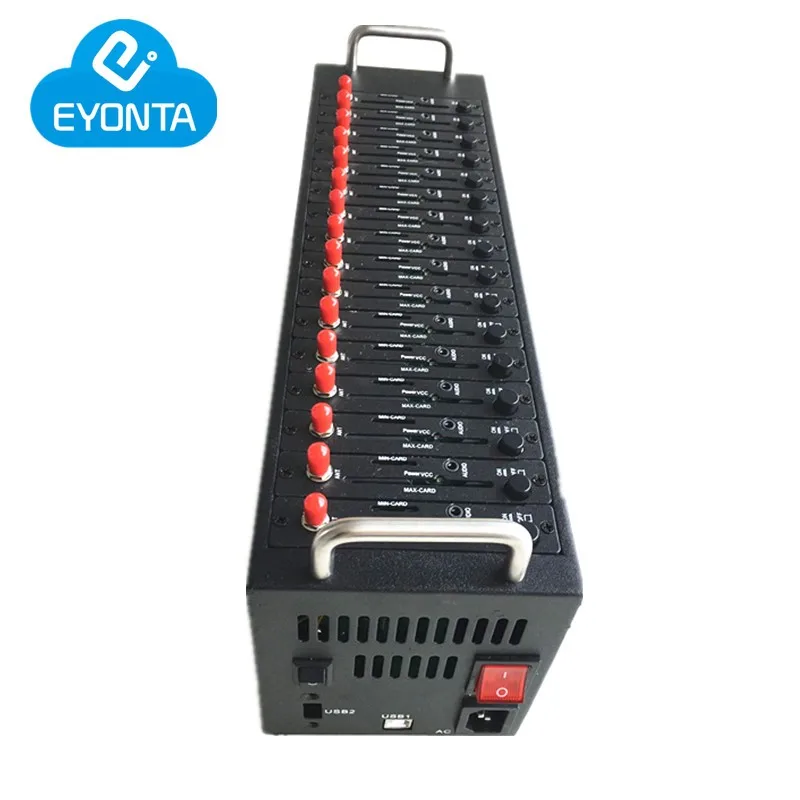

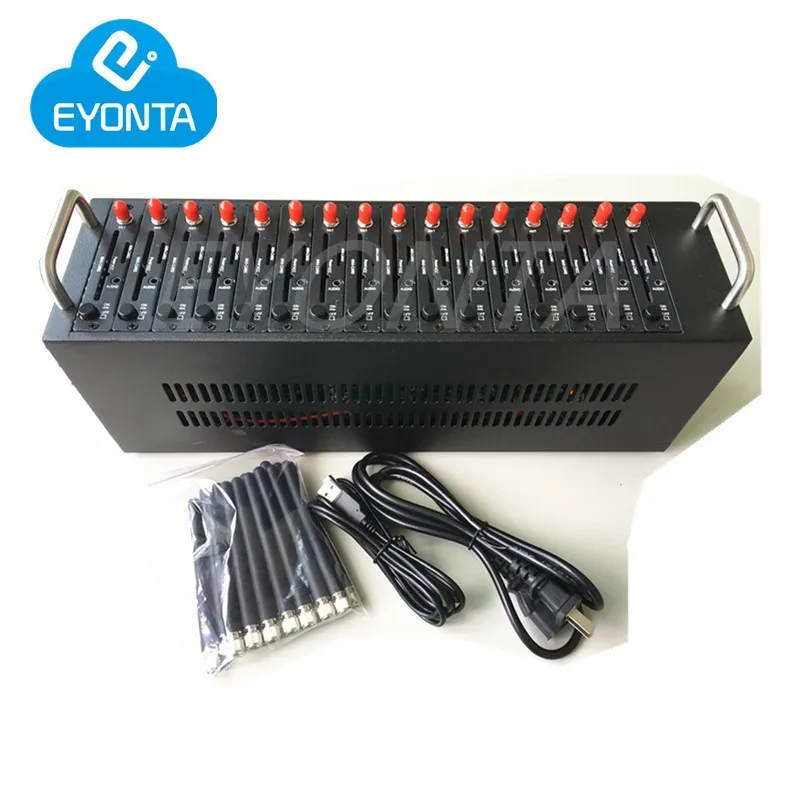

GSM SMS modem QUECTEL M35 module modem pool 16 ports

Brief Introduction
  GSM MODEM POOL  also known as "SMS cat pool" “Bulk sms machine” in China, With the USB 2.0 Cable connect with computer (laptops, desktops), insert both big and small sim cards, open our bulk sms software, then can send and receiving mass messages, simultaneously to send 600 pieces messages per hour for one port, totally 9600 for all 16 ports. Internal adapter assure stable voltage and excellent working environment. Free sms software will be provided.

Basic Characteristics

Quad Band GSM Modem: 850/900/1800/1900Mhz (worldwide use)

Just like 16 single-channel equipments work at the same time

Can insert 16 sim cards (big or small)

M35 GSM Modem supportchange imei by AT command

Send about 2000 sms per port per hour

Connection with the computer through a data line can be integrated with serial 8

Compatible with OS: Linux / XP / Vista / WIN7 / WIN8 etc.





Tech Parameters


Radio-frequency performance

Quad-band: 900/1800Mhz  /  850/1900Mhz

SMS:

Support Text and PDU mode

Power consumption

Voltage : 3.6V

       Class4(2W@850/900MHz)

       Class1(1W@1800/1900MHz)

Single-channel input V:

5V-28V

Single-channel input C:

MAX 1.7A, average 270MA

Baud rate:

Default 115200bps

Transmit-receive rate:

1000-1500 sms /Hour

AT command control standards:

GSM07.07, GSM07.05 and other extension

Antenna:

50 ohm,3dB gain

Size:

Standard 1U

Range of temperature:

- 35°C to +80°C  working

- 40°C to +85°C  conserve

Input:

110~240AC/50~60HZ

SIM interface:

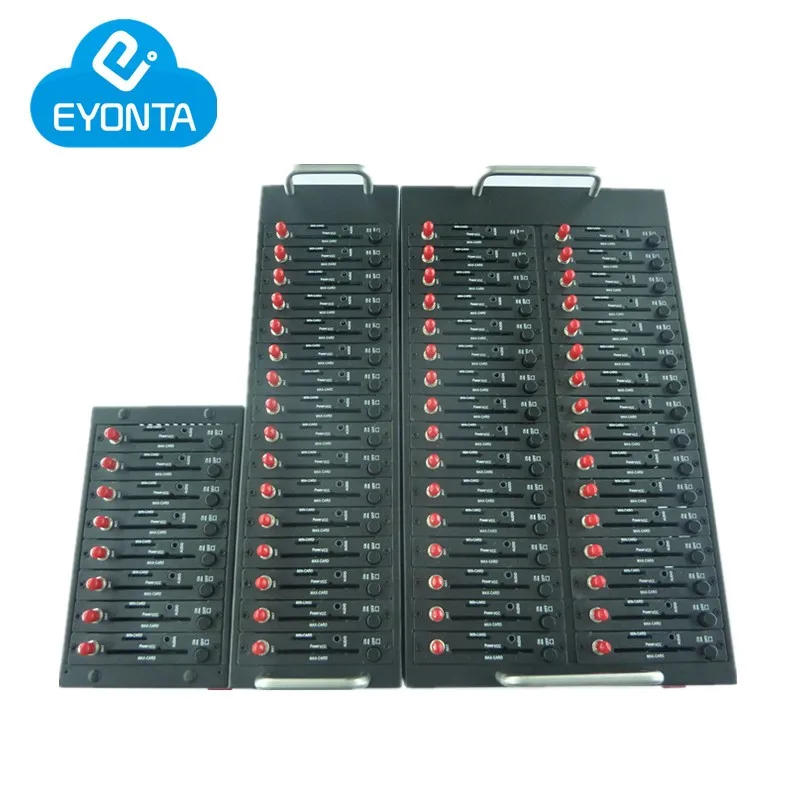

1/8/16/32/64  SIM cards slot

Antenna interface:

SMA antenna

Voice interface

3.5mm



 How to change the M35 module gsm modem imei

  1. Use putty to login the module
  2. Input the at command ATE1 to echo display
  3. //WRITE:AT+EGMR=1, 7, "359231033480797" this at command will change the module imei to 359231033480797, and pls notice that you have to use the correct imei number if not the imei will be changed back to factory after reboot.

 How to make a call



  1. Login the module and plugin the earphone in the module.
  2. Input the at command ATE1 to echo display
  3. Use at command ATD to make a call. Such as you want to dial 10086 then you need fill at command ATD10086; then you can hear the ring from the earphone. You can use at commandATH to handup a call.

Notice:



  1. This M35 gsm modem will blink every 2 seconds when it works normally.
  2. It blinks one time one second without signal. If like this please change the working module\'s sim card to this module to check.
  3. Please turn off the module power to change the sim card.

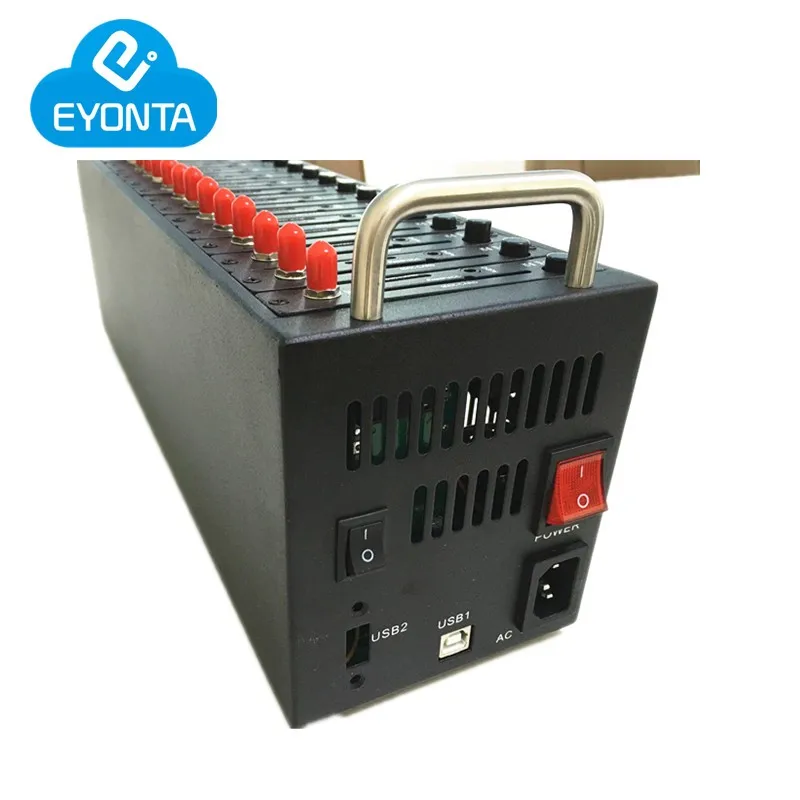

How to Install the modem pool ?
1. Make sure power cable connect device,
2. Insert SIM card, make sure chipset connect with card reader
3.Use USB 2.0 Cable connect computer, follow prompts to install driver
4. Turn on power, red LED light, all red light flashing stands equipment begins work





sms software
Compose easily to groups or all contacts in your contact list.
Contact list management - Manage subscribed and unsubscribed phone number.
Received SMS at Inbox. New messages are shown in bold.
Outbox showing messages to be sent.
Let you select which COM port to use. Information of the phone is shown if connected successfully.
List of already sent messages. Each column can be sorted by clicking the header.
Reply to inbox message.

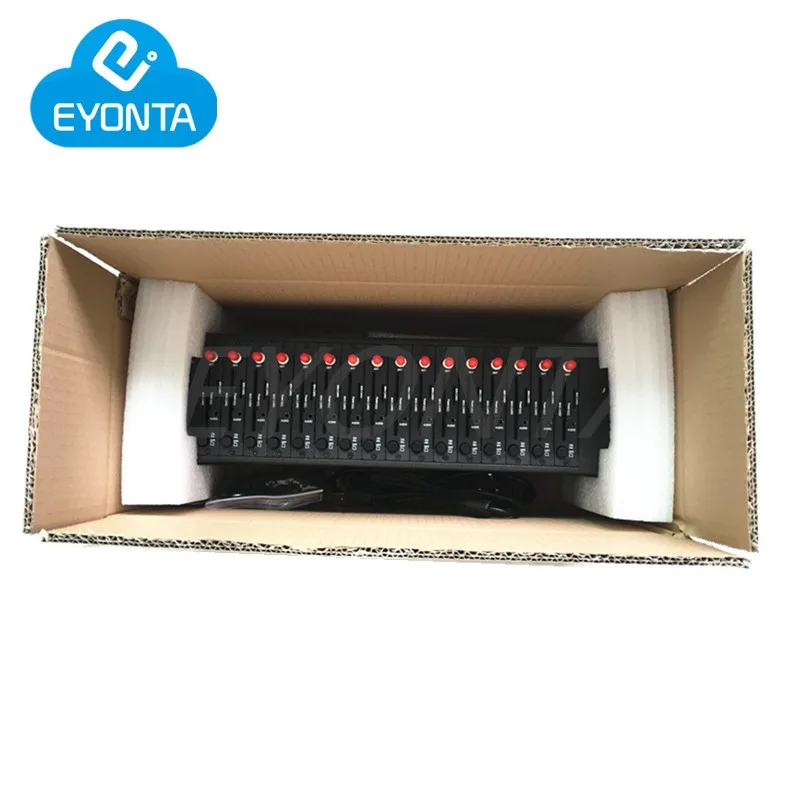

Packaging Details
