Item specifics
  • Style: Internal
  • Package: Yes
  • Model Number: MF226
  • wirless Modem Type: WCDMA,EDGE
  • Brand Name: JINYUSHI
  • Products Status: Stock
  • Type: Wireless
  • Transmission Rate: 14.4M
  • Interface Type: LGA
Product Description



    Welcome to our store---BIG\'K GPS/GSM MODULE PROFESSIONAL CO,.LTD




MF226 is a 108 pin the LGA HSPA + module interface, support/UMTS/WCDMA HSPA + 900 MHZ, 850

MHZ, 1900 MHZ and 2100 MHZ frequency, four supports GSM/GPRS/EDGE 850 MHZ, 900 MHZ, 1800 MHZ

and 1900 MHZ frequency.Support TDD 5.76 M / 14.4 Mbps has maximum data transfer rate.

Support diversity reception and GPS positioning function.


MF226 hardware single-sided cloth plate, high integration design, module size small, the

support of the function is all ready, and has passed the certification of the AT&T operators

of testing and certification of Japan\'s NTT DOCOMO operators of various tests, after these

high standards of strict test, to ensure that the product performance and quality, is zte

launched one of the high quality of high-end module.

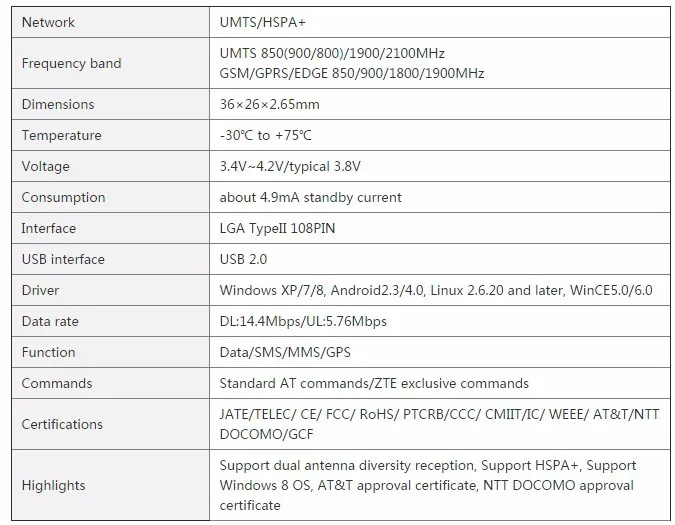

Product configuration
Hsupaare/UMTS/WCDMA: 850/1900/2100
GSM/GPRS/EDGE 850 MHZ / 900 MHZ, 1800 MHZ / 1800 MHZ
Support for UMTS 850/1900/2100 MHZ diversity reception
Support the GPS


Hsupaare/UMTS/WCDMA: 900/1900/2100
GSM/GPRS/EDGE 850 MHZ / 900 MHZ, 1800 MHZ / 1800 MHZ
Support for UMTS 900/1900/2100 MHZ diversity reception
Support the GPS


Products business application
According to the different application scenarios defined the rich interface definition,

products can be widely used in vehicle navigation, financial POS, remote medical, security

monitoring, such as tablets, video monitoring and other fields.


Product features
108 pin the LGA interface, high reliability and high stability.
Support high-speed USB2.0
Low power consumption
Support functions of text, data, the phone book
Support built-in TCP/IP protocol stack;
Support two way UART port
Support for SPI, I2C interface
Support SD card function
Provide the main set antenna and diversity antenna interface
Support standard AT instruction set and zte extension AT instruction set
The product certification is complete, stable performance, through the

FCC/CE/CCC/approval/ROHS certification such as conventional products, has passed the

certification of the high demand, high cost of PTCRB/GCF and other international product

certification.
By Japan and the U.S. carrier AT&T operators NTT DOCOMO of strict test, got the AT&T\'s NTT

DOCOMO TA TA and Japan.
