Report item
Item specifics
  • wirless Modem Type: LTE,TD-SCDMA,WCDMA,EDGE
  • Style: Internal
  • Package: Yes
  • Brand Name: JINYUSHI
  • Products Status: Stock
  • Model Number: SIM7100A
  • Type: Wireless
  • Interface Type: LGA
  • Transmission Rate: 100M
Product Description



    Welcome to our store---BIG\'K GPS/GSM MODULE PROFESSIONAL CO,.LTD

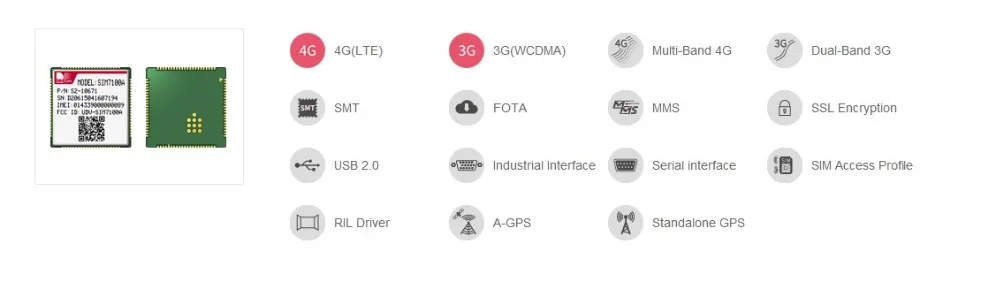

SIMCom presents an ultra compact and reliable wireless module SIM7100A which is based on

Qual comm MDM9215 multiple-mode LTE platform. SIM7100A is a complete multi-band LTE

/WCDMA/GNSS module designed with very powerful processors integrating application

core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from

small dimensions and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI,

I2C,Keypad, PCM, etc. With abundant application capability like

TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and

ease of integration for customer’s application.

Features General
- LTE-FDD B2/B4/B5/B17 Quad-Band
- UMTS/HSDPA/HSPA+ B2/B5 Dual-Band
- Via AT Commands or Gobi API Control
- voltage range: 3.4V~ 4.2V Supply
- temperature: -40 Operation to +85
- 30*30*2.9mm Dimension:
- 5.8G Weight:
- Cat3 LTE-FDD/Rel-9
- DC-HSPA+ Rel-10, HSPA+ HSPA+
- gpsOne Gen 8B standalone; GNSS; assisted, XTRA

For Data transfer Specifications
- LTE
- up to 50Mbps Uplink,
- up to 100Mbps Downlink
- HSPA+
- up to Uplink 5.76 Mbps,
- up to Downlink 42 Mbps
- UMTS
- up to 384Kbps Uplink/Downlink
- CSD
- data rate 57.6Kbps WCDMA
- 64Kbps CSD for Video call WCDMA
Features Other
- Driver for Microsoft Windows 2000/XP/Vista/7/8 USB
- Driver for Windows CE/Mobile USB
- Driver for Linux /Android USB
- supporting for Android/Windows CE/Mobile RIL
- Installation Automatic
- API SDK Linux
- update via USB Firmware
- Multi-PDP MT, PDP TCP/IP/IPV4/V6
- FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
- DTMF
- SDK to the Win7/Win8/Linux Gobi
- to Win8 MBIM
- Code of the PC manager of the device for reference Source

Interfaces
- USB2.0
- UART
- Card SIM
- SPI
- I2C
- current sink Constant
- GPIO
- ADC
- PCM *
- SDIO

Certifications
- FCC
- PTCRB
- IC
- AT&T
- ROHS (going on)
- REACH (going on)
- Rogers (going on)
