Item specifics
  • wirless Modem Type: WCDMA,CDMA
  • Products Status: Stock
  • Type: Wireless
  • Brand Name: Antecheng
  • Package: Yes
  • Transmission Rate: 256Kbps
  • Style: External
  • Model Number: ATPM-08
  • Interface Type: USB2.0/RS232
  • Modem type: ATC-W87U-FGT
  • Frequency: 850/900/1800/1900MHz
  • Warranty: 2 years
  • Port: 8
  • Weight: 3KG
  • manufacturer: Antecheng
  • Interface type: USB
  • OEM: Supported
  • Place of Origin: Guangdong, China (Mainland)
Product Description

8 port  gsm gprs  modem pool with TCP/IP stack STK   USSD IMEI changeable Bulk sms software gateway

 aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()



aeProduct.getSubject()

Based on Brand New wireless Wavecom industrial-grade chipset, 220V power supply, can be a long time stability, generous luxury housing.

Can insert 8 SIM cards(big or small). Just like 8 single-channel equipments send messages at the same time

Connect computer with a Durable and Portable usb data line

Each channel with separate power switch, Easy to Handle and Control, Ports support hot-swapping

Professional Technique Person Provide Free After Sales Service Online by teamviewer , One Year Warranty time and lifelong maintenance.

If you don\'t know how to use this item, please inquire before you buy it.(Skype:Angelina870914     whatapps: 0086-13923710189)



Parameter:

Dual-band GSM: 900/ 1800MHz  Frequency

Power Supply: 5-24V DC

Input voltage: 100 to 240V

Operating Temperature: -20°C - +55°C

Storage temperature: -25°C - +70°C



Basic Specifications:

USB GSM modem pool Build in 8 Gprs modem in one Simbox

Based on Wavecom industrial modules

Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s

Bound rate : 300-115200 bits / s

Automatic baud rate: from 2400 to 19200 bits / s

AT command control ( GSM 07.07 and 07.05)

8 x SIM card(big/small) slots

Sending Max 4800 messages per hour

Comply with GSM phase2 standard

Send and receive SMS, AT Command, Voice, USSD, Imei Changing(Optional)

Maximum transmitting speed 115KBps

Working temperature: -20 to +60 degrees Celsius

Storage temperature: -25 to +70 degrees Celsius

Double tone multi-frequency function (DTMF)

Each channel with separate power switch

Each individual module can be demolished

Industrial chassis, elegant shell

Color : black

A, system advantages:

Wireless GSM / GPRS / MODEM built on the broad masses of the personal needs of customers on the basis of the enterprises to meet the following requirements:

1, for the majority of customers the same or different delivery information;

2, promptly contact employees issued notices of meetings;

3, to avoid consuming a large number of enterprise human, material and information transfer on time;

4, to avoid high communication costs to be incurred in a month;

5, enterprises and customers (members) between the corporate partners, businesses and staff in the need for more exchanges.

B, the system features:

Send clusters: can be sent automatically to a large number of goals the same information.

Widely distributed: the geographical distribution of the target information widely scattered to support fast: after message, just a very short time can be transmitted to the target.

Convenience: the information through the portable phone to receive.

Accurate: the message can reach the goal of accurate and timely manner.

Exhaustive: the information sent by the computer system, significantly to avoid the artificial missing information.

Strong visibility: the way the text information to send and receive.

Economy: the reception of free information, send the cost of the SMS service provider in accordance with the rates, no long distance and roaming and other additional costs.

Time-saving and efficient: the same information can be sent at the same time to multiple targets; and can make use of multiple parallel processing terminal to send and receive text messages, thus saving a lot of time

Supported Operating Systems

All popular 32-bit and 64-bit versions of Windows are supported on both the server and client ends, including the latest revisions and service packs.

Windows 7/Vista/ XP/2003/2000/98SE/CE/Linux 2.40/ MAC 9.8

Applications

Government agencies, Enterprises, Newspaper, television and radio stations, Shopping malls, Supermarkets, Hotels, Logistics industry etc.


Packaging(Standard carton):

Product Weight:3 kg
Product Size:L22*W22*H16(cm)

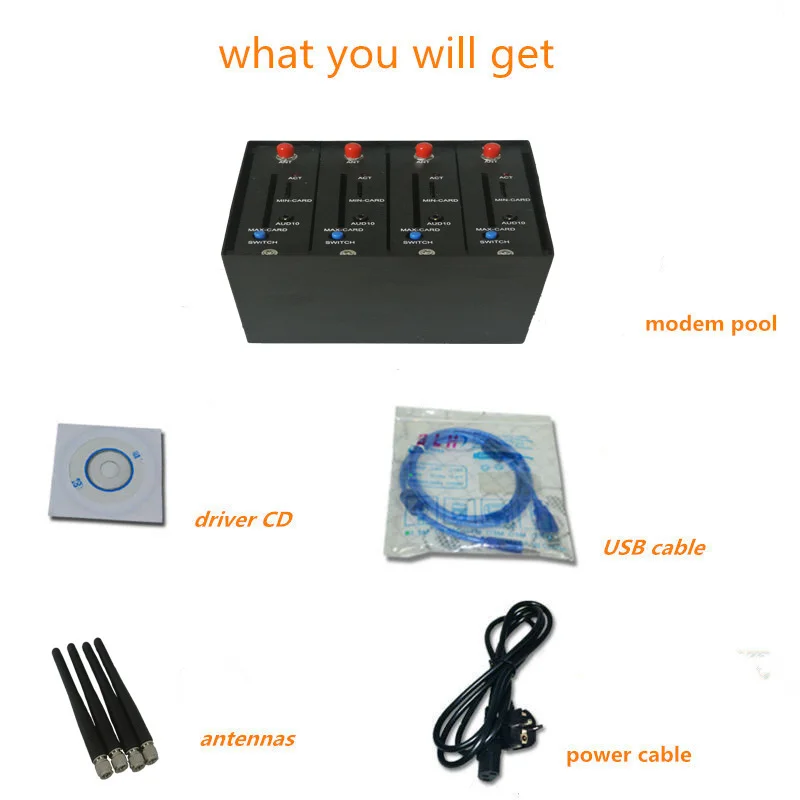

Accessories: Power cable, USB cable, Antennas and driver
Shippment: EMS/DHL/Fedex/UPS Fast Shipping Method according to your details address.

How to Install the modem pool ?

1. Make sure power cable connect device,
2. Insert SIM card, make sure chipset connect with card reader
3.Use USB 2.0 Cable connect computer, follow prompts to install driver
4. Turn on power, red LED light, all red light flashing stands equipment begins work
aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()
Packaging Details
  • Unit Type: piece
  • Package Weight: 3.0kg (6.61lb.)
  • Package Size: 20cm x 12cm x 14cm (7.87in x 4.72in x 5.51in)
