Item specifics
  • Style: Internal
  • Package: Yes
  • Model Number: MG301
  • Brand Name: JINYUSHI
  • Products Status: Stock
  • wirless Modem Type: EDGE
  • Type: Wireless
  • Interface Type: LCC
Product Description



    Welcome to our store---BIG\'K GPS/GSM MODULE PROFESSIONAL CO,.LTD

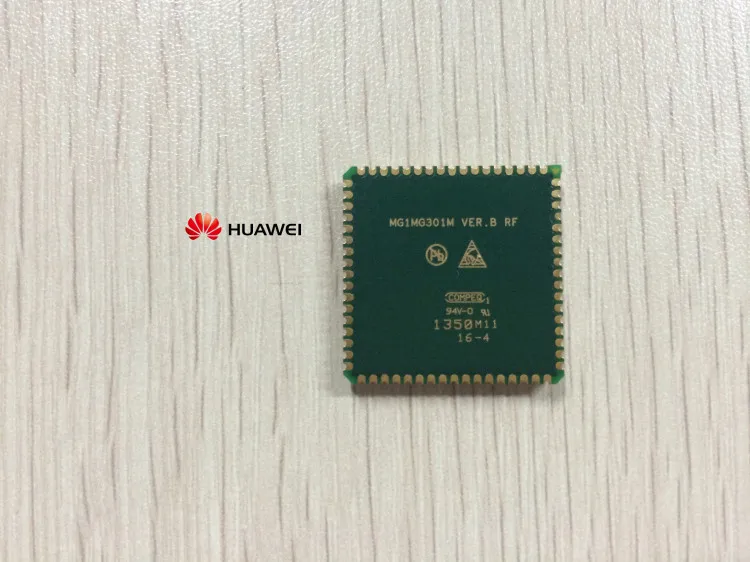

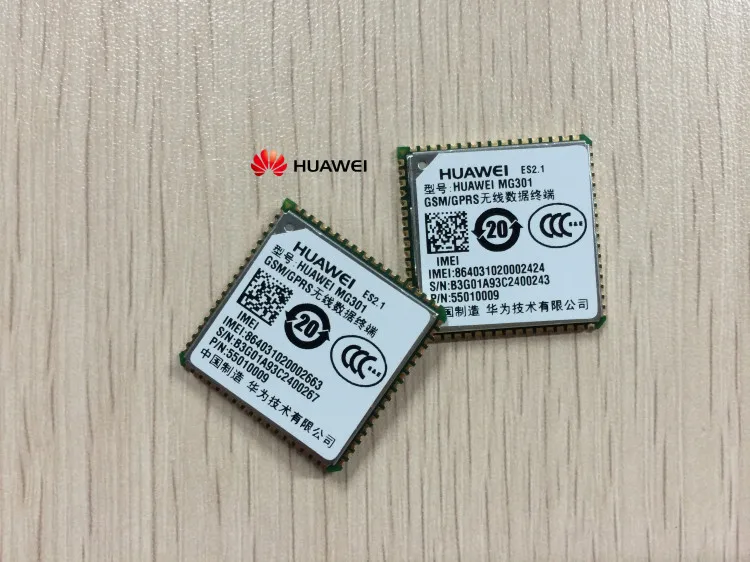

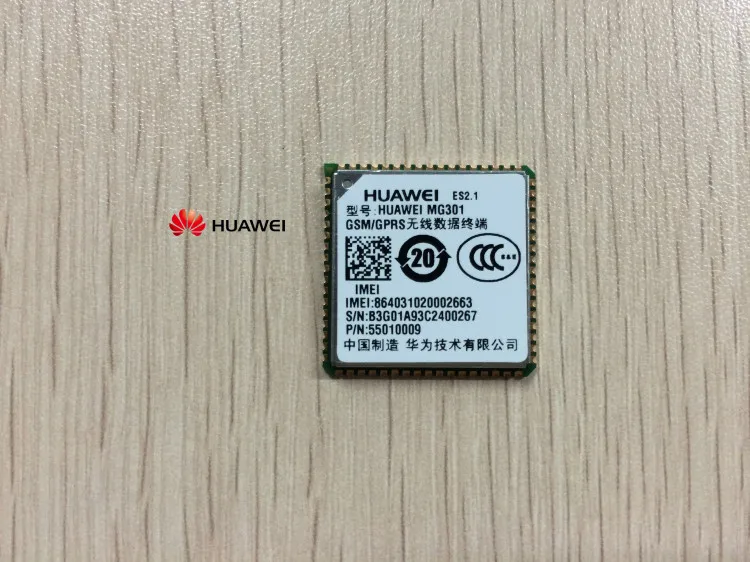

HUA WEI MG301 GSM LCC Module

Description of product characteristic
S

physical characteristics

Size: 24 x mm 24 x mm 2.95 mm

Weight: < 3 G

Working band support GSM 4 frequency: GSM/GPRS 850 MHz/1800 MHz/1900 MHz MHz/900

Operating temperature of the normal operating temperature: - 20 degrees C ~ +70 ~ C

Extreme operating temperature: - 40 degrees C ~ +85 ~ C

Storage temperature - 40 degrees C ~ +85 ~ C

Operating voltage V 3.3 DC - 4.2 V (typical value 3.8 V)

Power consumption (3.8 V test)

Shutdown leakage current: 240 A

Standby current: < 3 mA

Class GPRS 10 (max): typical=350 mA I

Application interface (LCC 68-pin interface)

SIM card interface (3.0V and SIM 1.8V card)

2 way analog voice interface

UART1 interface (support 8 wire serial port) and UART0 interface (support 2 wire serial port)

Network status indicator

Power on / off interface

Hardware reset interface

Sleep / wake control interface

Sleep status indicator interface

Module wake-up host interface

Antenna interface antenna pad

Short message service support new SMS alert, SMS receiving, short message sending

Support SMS Management: read the message, delete message, store status, SMS list

Support PDU mode

GPRS CLASS GPRS 10

Encoding way CS 1, CS 2, CS 3, CS 4

Maximum downlink transmission rate: 85.6 kbps

Maximum uplink transmission rate: 42.8 kbps

Support PBCCH

Embedded TCP/IP protocol, support for multiple Socket links

Certification information CCC (Compulsory Certification China) China model approval certificate

(Note: perfectly compatible and To Pin MG323-B/MB323-B replaces TTS Pin)
